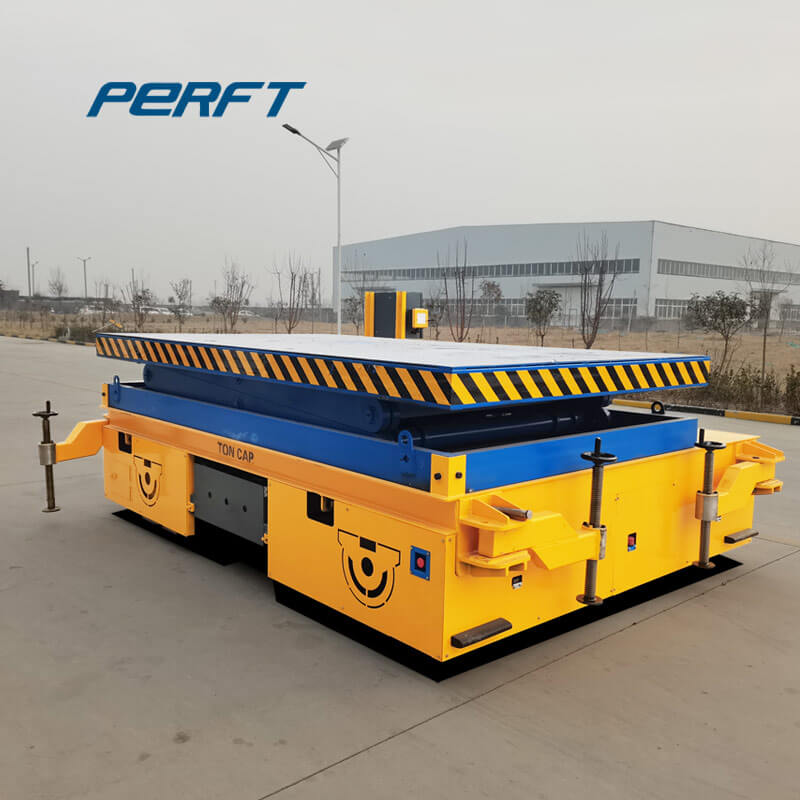

5 Ton Trackless Transfer Platform Handling Vehicle for Heavy Industry

Trackless transfer platform handling vehicles are composed of the power supply, transmission mechanism, steel structure load-bearing frame, steering system, walking mechanism, control module, and f...

Send E-mail Chat Now

Products

INDUSTRAIL TRAILER

Ackermann Steering Trailer

Double Directions Tow Trailer

General Trailer

Heavy Duty Trailer

RAIL TRANSFER TROLLEY

Battery Powered Transfer Trolley

Cable Powered Transfer Trolley

Rail Powered Transfer Trolley

TRANSFER CART ON WHEELS

AGV

Differential steering Transfer Cart

Hydraulic Steering Trackless Vehicle

Omnidirectional Mobile Trackless Vehicle

Inquiry

Related products:

5 Ton Trackless Transfer Platform Handling Vehicle for Heavy Industry

Steerable Electric Trackless Transfer Vehicle Industrial Tugger Carts

Steerable electric trackless transfer vehicle industrial tugger carts are used to move molds, coils or materials between the press room and the mold storage and maintenance area. The advantage of t...

Heavy Duty Trackless Carriage Motorized Transfer Handling Vehicle

Product introduction: This motorized transfer handling vehiclet is powered by battery, traveling cable, rail, generator, or another way. This series Industrial Railroad Vehicle is able to run be...

Description

We offer a wide range of specially designed material transfer carts to meet the unique needs of stamping and forming. These products include mold transport equipment, mold carts, and mold transfer carts, and mold trailer systems. This cart can be run on rail or concrete floors, depending on the shipping route or the customer’s project plan.

Details of trackless transfer platform handling vehicle:

Model		BWP-2T	BWP-10T	BWP-20T	BWP-30T
Rated load (T)		2	10	20	30
Table size	length(L)	2000	3600	4000	4500
	Width(W)	1500	2000	2200	2200
	Height(H)	450	500	550	600
Wheel Base (mm)		1200	2600	2800	3200
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400
Ground Clearance (mm)		50	50	50	50
Motor Power (Kw)		1	1.6	2.2	3.5
Battery Capacity(Ah)		180	160	180	250
Battery Voltage(V)		24	48	48	48
Running Time When Full Load		4.32	4.8	4	3.5
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4
