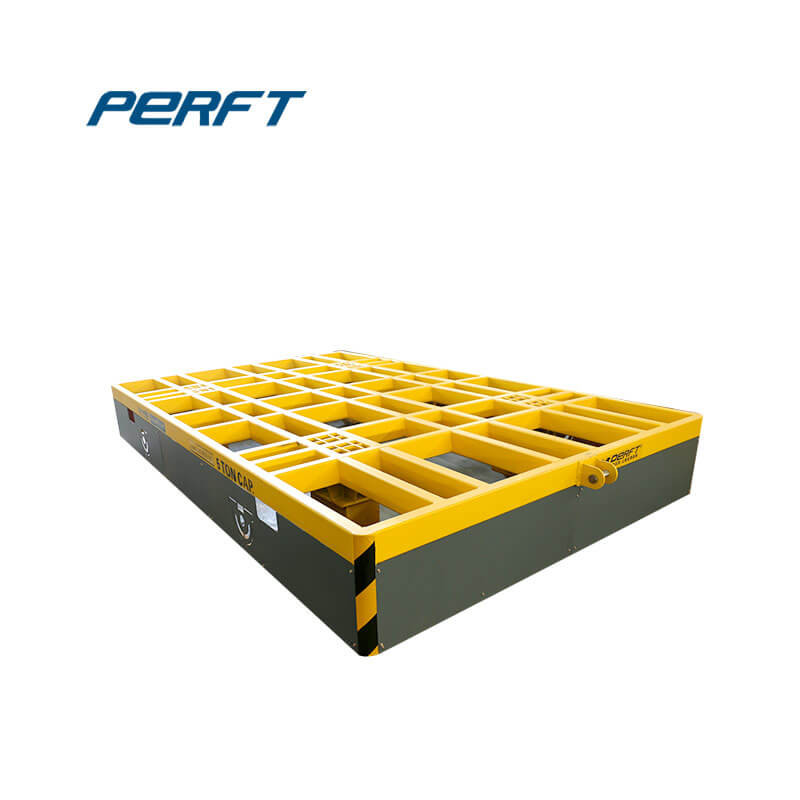

Double axle steering factory utility trailer cement floor operation

Double axle steering factory utility trailer cement floor operation is also called non-powered Double axle steering factory utility trailer cement floor operation. It needs to be towed by other mot...
Description

Double axle steering factory utility trailer cement floor operation is also called non-powered Double axle steering factory utility trailer cement floor operation. It needs to be towed by other motorized equipment, such as tractors, locomotives, forklifts, and tractors of the same force. Now, this kind of industrial flatbed trailer has been widely used in material transportation in various fields: airports, seaports, warehouses, factories, railway stations, etc. In order to maintain stability and flexibility during the rollover process, especially in small spaces, our engineers optimized the steering mechanism. At the same time, the rigidity of the wheel press and the frame has been reasonably designed and can be used for linkage of multiple trailers. After years of hard work, our material handling equipment has been highly recognized by customers.



Application

Our steering factory utility trailer can be used on a construction site to transfer heavy concrete castings. For construction sites, the trailers often need off-road towing capacity which means we need to focus on the issue of working in muddy off-road conditions. For good performance ability, we have installed the damping device on the trails.



Shipping Containers Moving:

This kind of steering factory utility trailer can move the shipping containers around at a maintenance terminal. The extended tongue allowed oversize containers to overhang the frame giving the customer flexibility to haul different size containers. Many other job sites: airport, warehouse, logistics, workshop, forestry center, etc.



Parameters

Table Size(mm) 2000*1500 2500*1500 3000*2000 3200*2000 4000*2000 5000*2200 6000*2400 6000*2500
Height of Trailer (mm) 500 600 700 750 750 800 850 950
Wheel Quantity 4 4 8 8 8 12 12 12
Tire Specification 254*102 305*165 559*254



559*356 22*9-10



22*9-10



22*10-16



22*14-16



Tire Material Polyurethane Solid Wheel, Press-on Solid Tire



Frame Material Q235 Q235 Q235 Q235 Q235 Q345 Q345 Q345
Color Customized
Speed(km/h) 0-20 0-20 0-20 0-20 0-15 0-15 0-15 0-10
