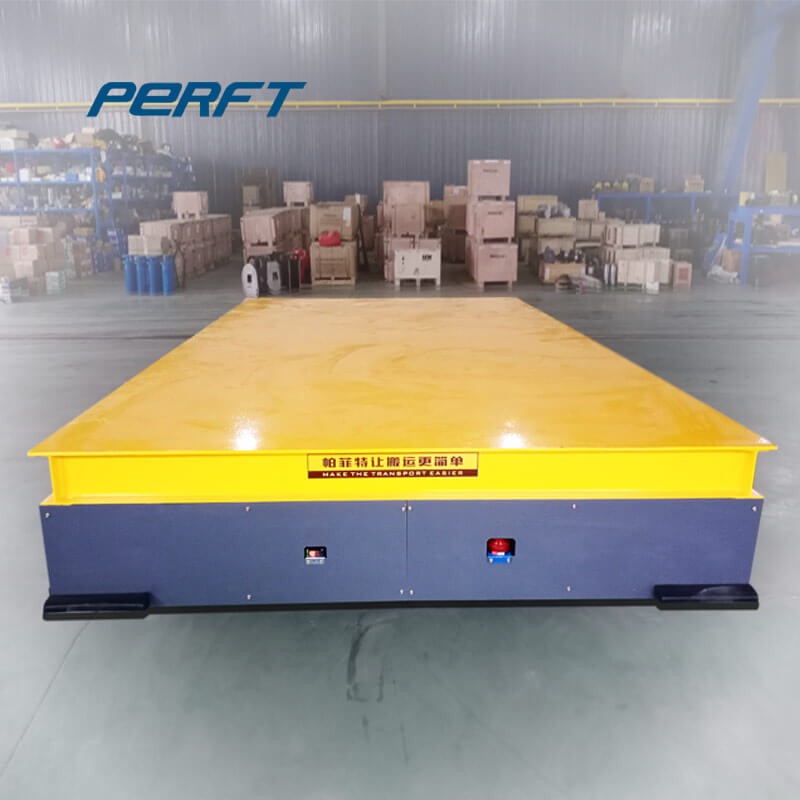

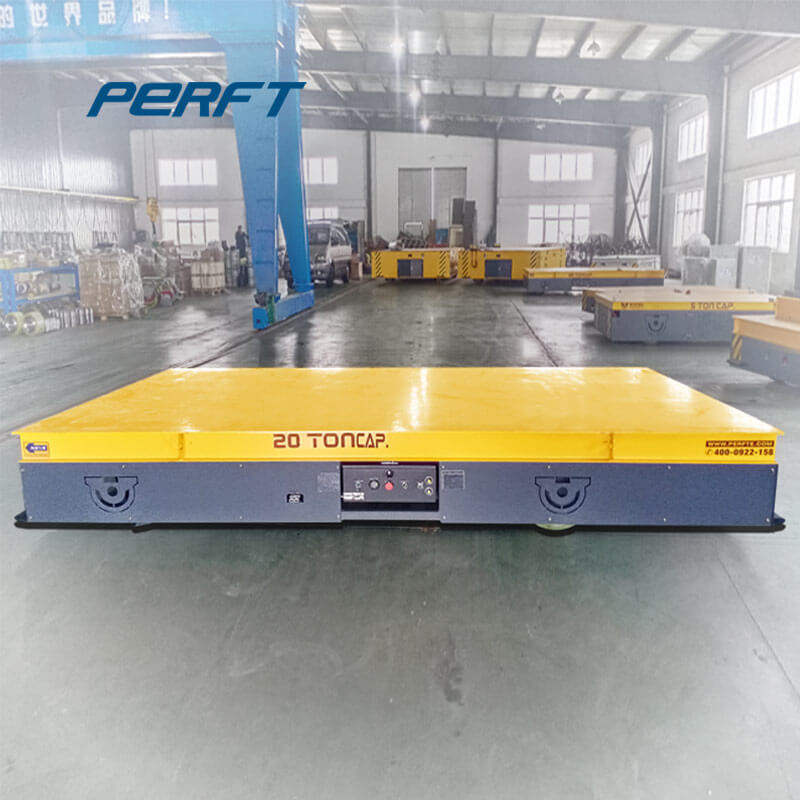

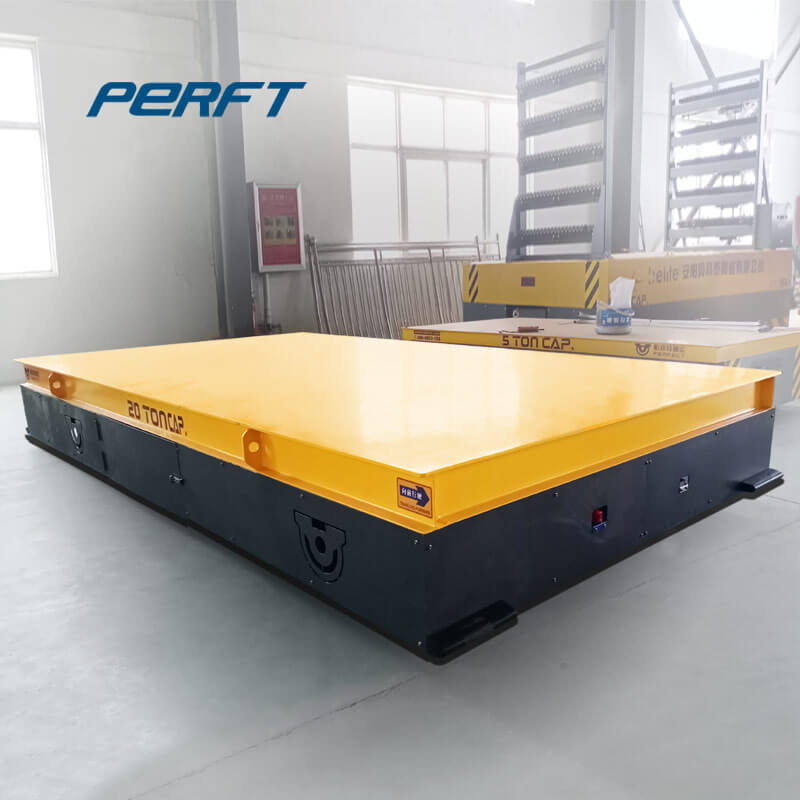

Double direction straight line steering wheel move transfer trolley

Steering Device Steel Trolley Car Transporter with Alarm Light

Product Introduction In the metal industry or steel plant, there is a problem for high-temperature molten steel ladle, liquid iron ladle transferring. Our molten steel ladle transfer car can sol...

Four Wheel Steering Trackless Motorized Transfer Car

Four wheel steering trackless motorized transfer car is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. Four wheel steering trackless motorized ...

Description

Double direction straight line steering wheel move transfer trolley uses lead-acid batteries as energy, control modules as the core control, operating handles and remote control or magnetic strip tracking on the ground as input means, load cargo on the table, and use the steering wheel to guide the direction and the fixed wheels jointly carry the weight, the original power is provided by the motor, the torque is amplified by the reducer and the power is provided to the fixed wheels, the LED sound and light alarm is used as the work and warning sign, and the intelligent charger is used as the external power input. With the combination of the above functions, the working capacity of the automated rail transfer truck is formed together.

Working environment:

1. Ambient temperature: -20℃-40℃

Ambient humidity: relative humidity ≤70%

Environmental PH: work in a neutral or near-neutral environment

Connectivity continuity rate: 25%

Air cleanliness: no corrosive floating objects, no flammable and explosive gas

Work site: (1) Slope: ≤2.8°

(2) Flatness: ±2cm/m

(3) Cleanliness: The site requires no visual garbage, no raised defects> 1cm, etc.

2. Applicable to special environments such as flammable and explosive;

3. Applicable to general occasions such as metallurgy, coal, electromechanical, heavy industry, shipbuilding, light industry, etc.
