Description

Product introduction:

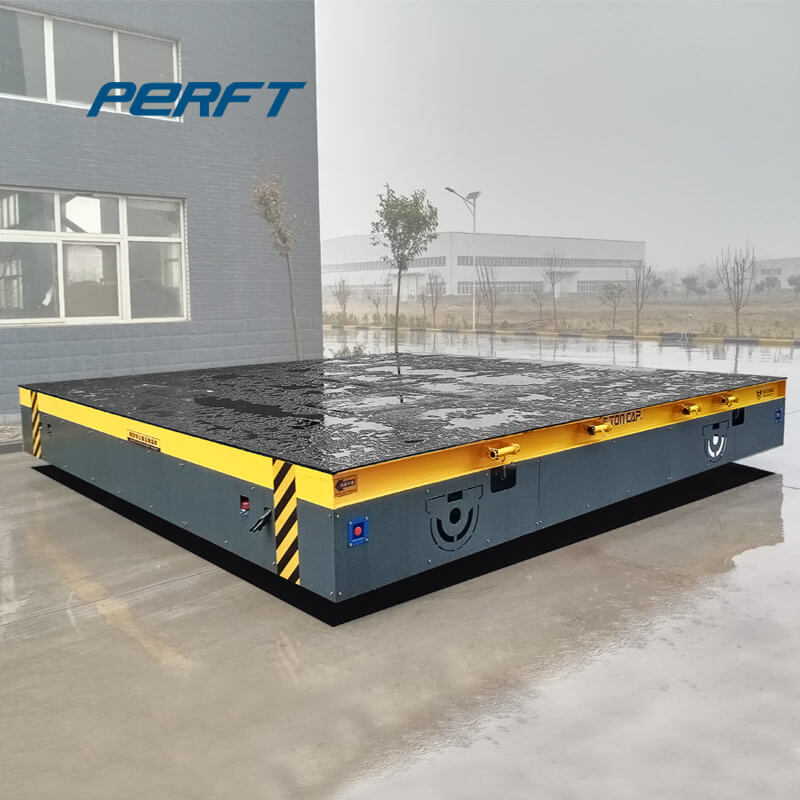

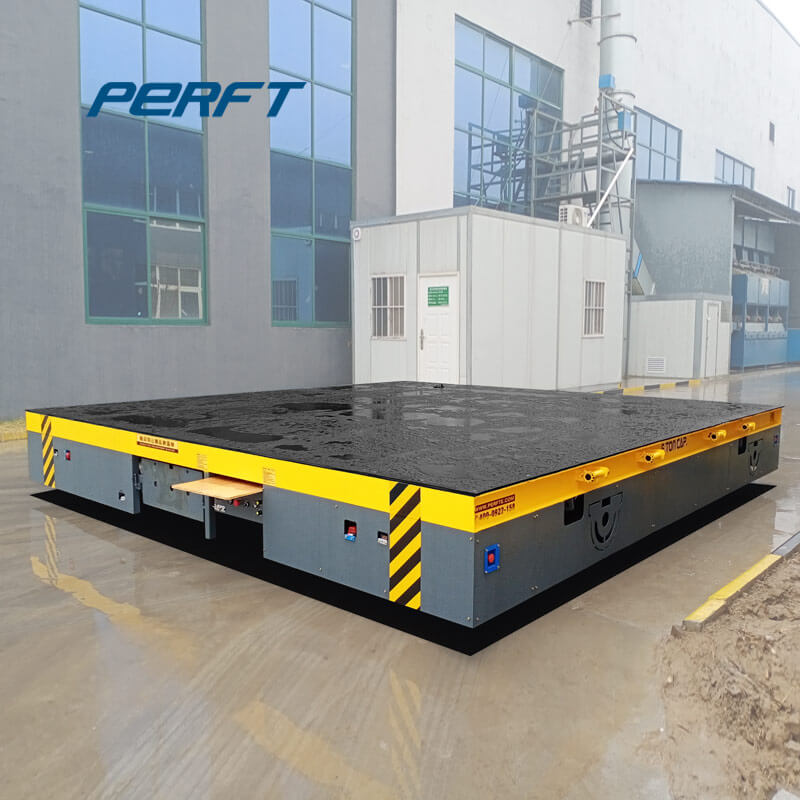

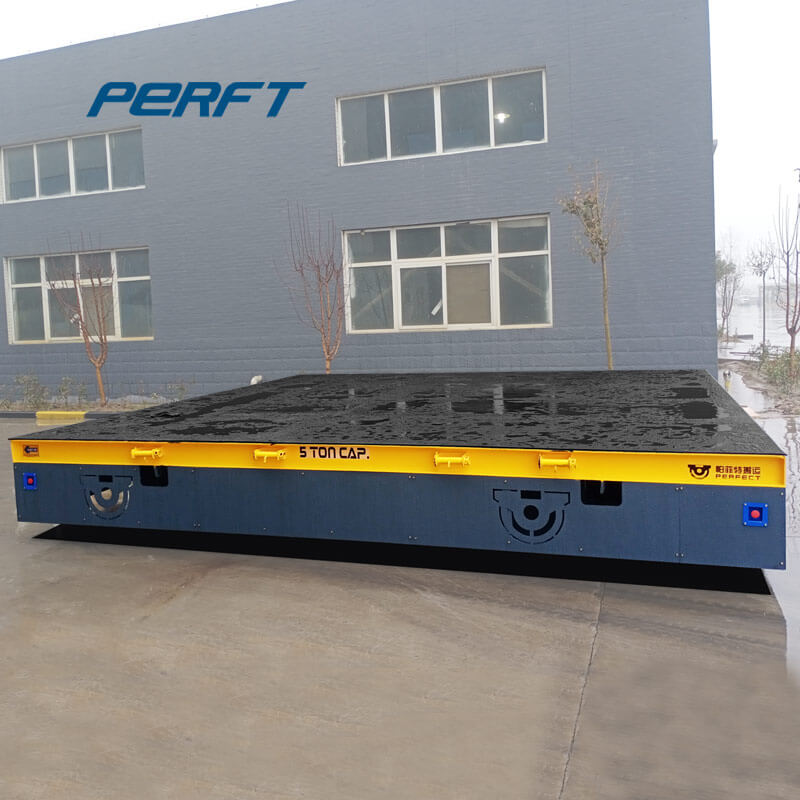

This motorized transfer handling vehiclet is powered by battery, traveling cable, rail, generator, or another way. This series Industrial Railroad Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, motorized transfer handling vehiclet is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another.

Features of motorized transfer handling vehiclet :

1.The series flat car has adjustable speed, saves transportation time and is easy to operate by wireless remote control.

2.The components adopt Chinese military grade components and can also be matched with Siemens and other partner components.

3.The trackless transfer vehicle on the cement floor can realize 360° direction steering, which is suitable for long-distance, low-frequency unfixed routes.

Model		BWP-2T	BWP-50T	BWP-150T
Rated load (T)		2	50	150
Table size	length(L)	2000	5500	10000
	Width(W)	1500	2500	3000
	Height(H)	450	650	1200
Wheel Base (mm)		1200	4200	7000
Wheel Diameter(mm)		Φ270	Φ500	Φ600
Motor Power (Kw)		1	5	15
Battery Capacity(Ah)		180	330	600
Battery Voltage(V)		24	48	72
Running Time When Full Load		4.32	3.3	2.9
Running Distance for one Charge(Km)		6.5	4	3.2
Max Wheel Load (KN)		14.4	174	265.2
