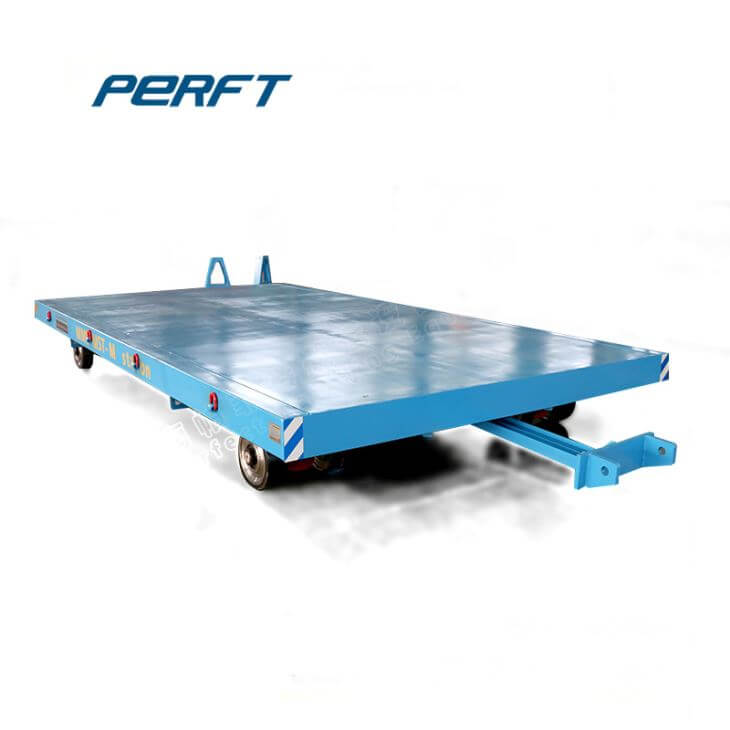

Non-motor quad steer tugger carts tow transfer trailers usually use low-platform, heavy-duty pressed-in solid tires. It is safe, simple, durable, and there is no risk of tire blowouts. There is nothing it can do by itself and should be towed by a forklift or tractor. One or more flatbed trailers and a forklift or tractor form a series of trains that can transport goods horizontally and carry large equipment.
These Non-motor quad steer tugger carts tow transfer trailers can be towed once with a forklift or other motors, and one or more trailers can be towed once. These trailers form a flatbed trailer to improve efficiency.
The Non-motor quad steer tugger carts tow transfer trailer is equipped with compactable solid rubber tires, which makes the trailer low in height, but has a large load-bearing capacity. A tractor or forklift can be connected to one or more trailers through a tow bar or a pin, which greatly improves work efficiency and saves labor. The size and loading capacity of the table are customized according to customer requirements or applications.
The trailer will apply pressed-on solid rubber tire, which makes the trailer with low height but heavy load capacity.
The quantity of wheels is from 8-16, and service life of wheels will be over than 5 years, which is very safe, reliable and cost saving
The height of towing hook is adjustable to adapt different tractor, forklift. There are two springs on the towing device, which will protect the trailer and cargo when it is started or suddenly stopped.
Industrial trailer will be equipped with connector or pin to cooperate with the tractor or forklift
Other optional functions for trailer:
– Pattern plate is available for the table
– Four side of the industrial trailer could be installed guardrail or steel bar
– For load capacity below 3 tons, parking brake is optional to prevent the trailer from moving
